Set Up a Basic Audio Track for a Podcast at Ignite’s AV Studio

By Garen Robie

The AV Studio at Ignite can be pretty daunting to some—including Ignite staff—because of its state-of-the-art equipment. Like most daunting tasks, it’s best to break each step down. Today, let’s go through how to set up a basic audio track for a podcast.

First, use the key provided to turn off the ventilation.

exhaust fan key

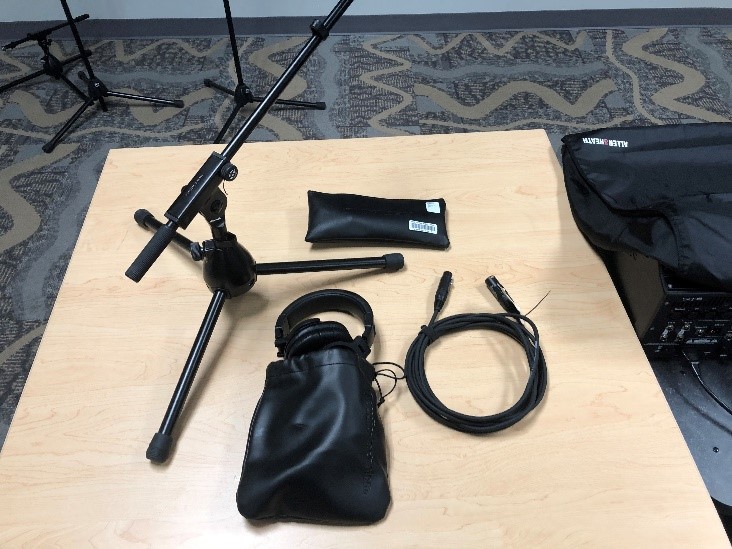

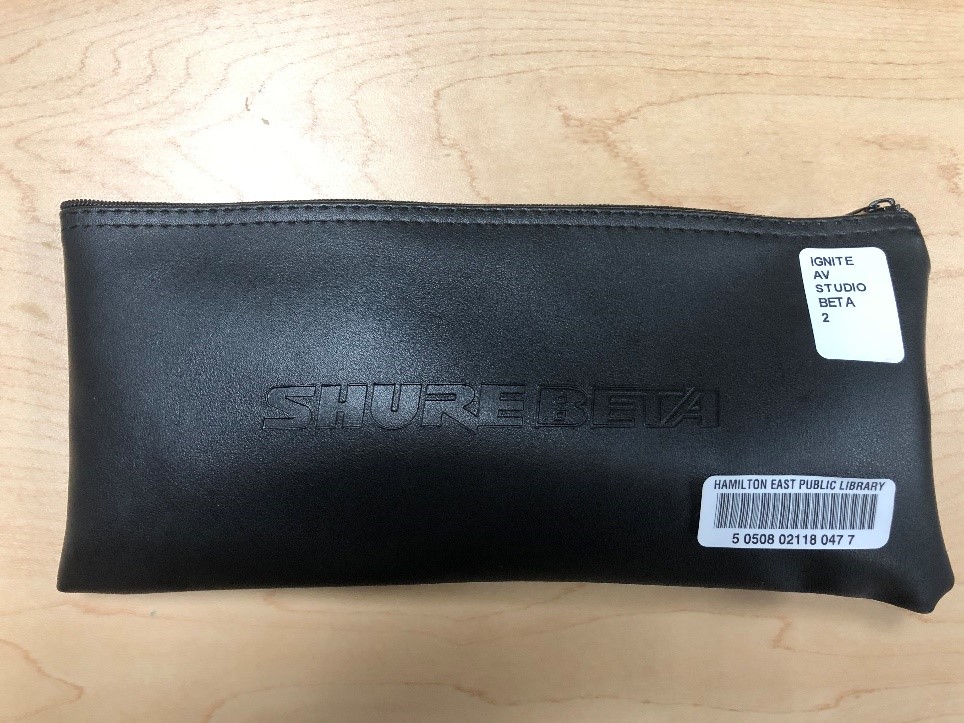

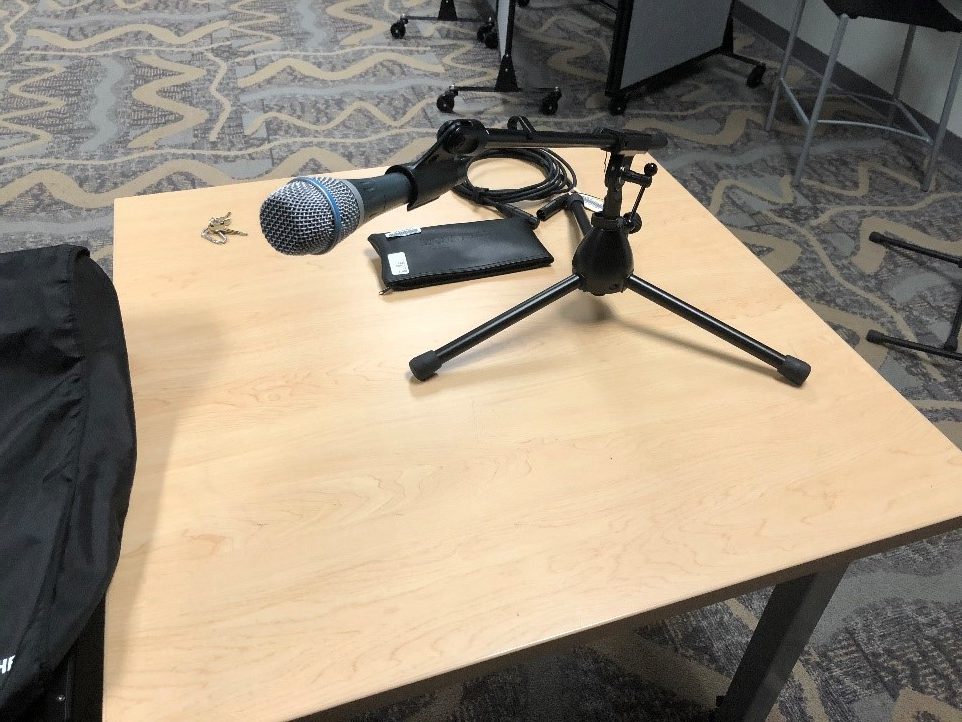

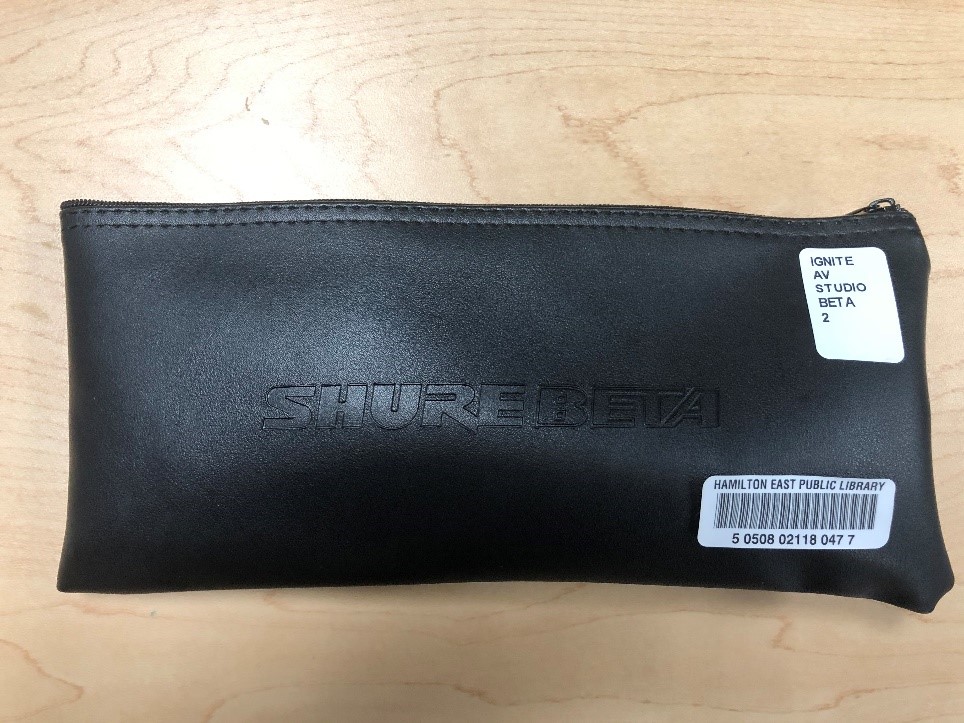

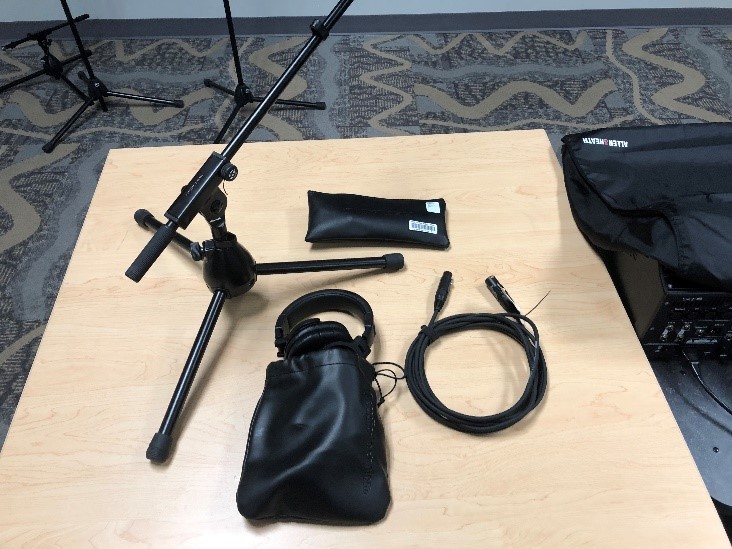

With the assistance of Ignite staff, select your microphone, cables, and headphones. For a podcast or spoken word, I recommend the Shure 87a Beta microphone.

With the headphones, make sure you have the adapter jack to plug into the soundboard.

headphones and jack

Power on the computer, keyboard, and mouse.

mac wireless mouse

Press Start Sequence on the Furman CN-2400S to power on the soundboard (SQ6) and monitors (JBLʼs).

Furman CN-2400S

Select Scenes on the SQ6 and use the touch screen to choose 2) Speech 4 mics, hit Go, then select Yes.

Furman CN-2400S set up audio track for a podcast Furman CN-2400S audio track for a podcast

Use an XLR cable to plug into channel 1 on the back of the SQ6.

xlr cable for mic audio track for a podcast SQ6 audio track for a podcast

Use the PAFL function on each track to send it to the headphone output on the upper right corner of the SQ6.

SQ6 audio track for a podcast SQ6 audio track for a podcast

Press the Processing button under the screen. The Select function toggles between different channels on the board. Use Preamp Gain and High Pass Filter (HPF) to make sure the sound from the microphone is not overloading your channel.

audio track for a podcast high pass filter audio track for a podcast

On the iMac, go to Finder and under Applications select Studio One.

finder mac

Continue through the prompts and select Create New Project. If you are doing a podcast, simply select Empty Song.

new project studio one audio track for a podcast

Press T on your keyboard to add tracks. A track is a layer of sound derived from one input. The board can facilitate many inputs and tracks, but for a podcast or spoken word you will only need one. Then select the input menu on each track, and choose track 1.

Next, click on Preferences under the Studio One header.

preferences studio one

Under Preferences, select Audio Setup and set your output and input to SQ Audio.

audio studio one audio track for a podcast

Click the glowing mute button to unmute the channel, then use the faders on the SQ6 to adjust the level of sound being sent to the computer. (Make sure not to overload the channel!)

faders SQ6 audio track for a podcast

Click on the red circular Record button in the Transport (at the bottom of the window) to begin recording.

Click the square Stop button to stop.

To listen back, mute all microphone channels. Then, turn up L/R fader on the SQ6. Use the transport to move the playhead back to the beginning of the track, and then press the Play button.

mute SQ6 audio track for a podcast

To export a song, press command(⌘) e and follow the prompts to name your file and change export settings. Hit OK.

You have made your first recording! At this point you can transfer your file to a USB or portable hard drive—if you don’t have one you may check one out at the front desk. Remember to shut down the computer, turn off the mouse and keyboard, power down the SQ6 at the Furman CN-2400S, and turn the fan back on before you leave.

Now you know how to set up a basic audio track for a podcast. Hopefully, this has been a helpful glimpse into operating the soundboard and software. Stay tuned for more blogs and tutorials from Ignite on our Ignite Community Discussion Board and on YouTube.
